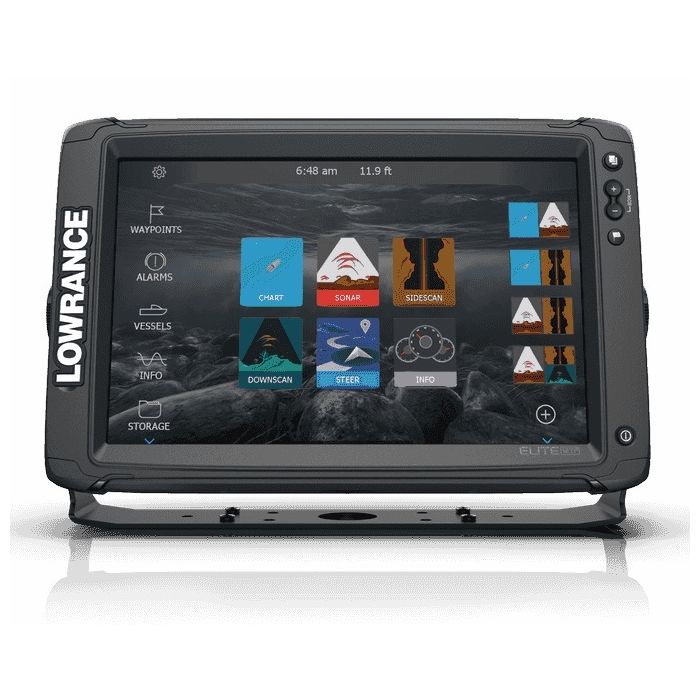

ELITE 12 Ti2 US Inland 3-in-1 Transducer

Lowrance ELITE 12 Ti2 Fish Finder with 3-in-1 Transducer

Model: 00014658001

• Active Imaging 3-in-1 Sonar (CHIRP/SideScan/DownScan)
• Active Imaging 2-in-1 Sonar (SideScan/DownScan)
• C-MAP Genesis Live
• Smartphone Notifications
• Wireless Networking
• Preloaded C-MAP US Inland mapping with a multitude of mapping options, including C-MAP, Navionics? and more)
• FishReveal? Smart Target View
• C-MAP Easy Routing, Navionics Autorouting capability
• Easy-to-use, high-resolution touchscreen display
• Built-in CHIRP and Broadband Sounder?
• SmartSteer? control for Xi5 Trolling Motor
• Integrated wireless connectivity
• NMEA 2000? engine support
• Preloaded C-MAP US Inland mapping with a multitude of mapping options, including C-MAP, Navionics? and more)
• Enhanced Surface Clarity lets you see more fish targets near the surface
• Quick Access Control Bar provides one?touch access to system controls

With the new Elite Ti , you get more advanced fishfinding features and connectivity, without the premium price. From high-detail Active Imaging? sonar, FishReveal?, built-in Genesis Live real-time mapping and enhanced screen clarity and target separation to features that make your life easier on the water, like an easy-to-use touchscreen, wireless networking, smartphone notifications and trolling motor/Power Pole? integration ? Elite Ti was designed to help you have an easier time finding fish. Active Imaging 3-in-1 sonar (CHIRP, SideScan and DownScan) and 2-in-1 sonar (SideScan and DownScan) lift Elite Ti fishfinding performance to another level, offering offer greater resolution, clarity and contrast at a range unmatched by any fishfinder in its category. Elite Ti delivers more powerful navigation features with preloaded C-MAP? US Inland mapping, C-MAP Easy Routing + Navionics? Autorouting and Genesis Live real-time mapping. You will have a much easier time targeting key areas with US Inland fishing map that features 1-foot contours on more than 4,000 lakes. If you would rather create your own maps of a favorite fishing spot or a lake without detailed mapping, take advantage of the built-in Genesis Live real-time mapping capability to create your own, exclusive ?-foot contour maps live on the screen of your Elite Ti display. New Elite Ti wireless networking allows you to share sonar, waypoint and route data wirelessly between Elite Ti displays, removing the need to run cable. With new smartphone notification capability built into Elite Ti , you can keep your eyes on the fish and never miss another text or call; or turn off notifications for uninterrupted fishing.

Specifications

Size 12"/ 304.8 mm (16:9)

Resolution 1280W x 800H

Backlighting LED

Media Port 1 microSD slot

Power Supply Voltage 12 V DC (10-17 V DC min-max)

Current Draw 12 W (0.9 A @ 13 vDC)

Product Width 12.9"/ 328 mm

Product Depth 3.5"/ 89 mm

Product Height 8.8"/ 224 mm

Power Output Max 500W RMS

Active Imaging 3-in-1 DownScan Imaging? at 455 kHz: Max 300 ft / 91 m: SideScan Imaging at 455kHz: Max 300 ft./91 m to each side

Depth Alarm Yes

Shallow Alarm Yes

Temperature Readings Yes

Transducer Type 9-pin Connection, with optional 9-pin to 7-pin adapter; Multiple Selections Lowrance? and Airmar?

Routes 100

Waypoint Storage 3000

Plot Trails Up to 100 trails with up to 10,000 points per trail

GPS Antenna Type 10kHz Internal high-sensitivity WAAS/EGNOS/MSAS

GPS Alarms Yes

Custom Mapping Optional Americas chart upgrades include C-MAP Insight PRO, C-MAP Lake Insight HD, C-MAP MAX-N, Navionics? HotMaps? Premium, Navionics + and Fishing Hotspots? PRO.

Networking NMEA 0183 and NMEA 2000?

Waterproof Standard/Rating IPx6 and IPx7
