SS-9-HD Shuttle Slide

Discontinued - see SS-9-UHD at the same price.

Heavy Duty 9 Inch Retractable, Quick Release, Trolling Motor Mount Bracket with Lifetime Warranty

Heavy Duty 9 inch Retractable Quick Release Trolling Motor
Mount

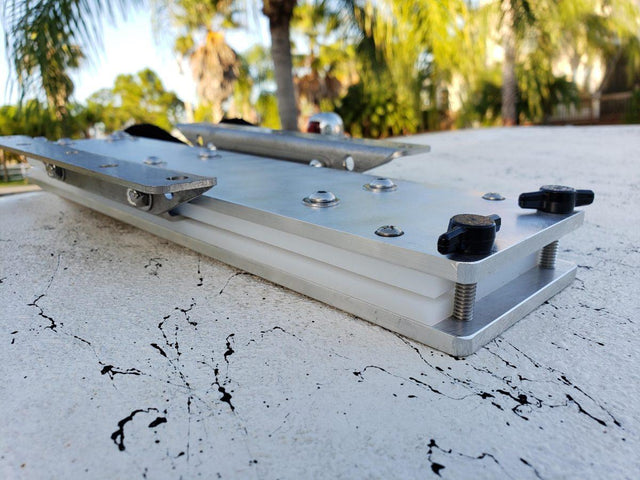

CNC Machined from 0.25? 6061-T6 plate this is a strong
linear mounting system with a lifetime warranty*.  This
model retracts ~9 inches and is designed to provide a retractable mount base
and bracket for your Minn Kota, Motorguide, Rhodan or
any other trolling motor with up to 60 inch shaft length.  If you want to
use your standard quick release mount such as RTA-17, MKA-21, RTA-54, RTA-62,
MKA-64, just add a BMAP-54 and
you are all set!  With a built in simple to use quick release mechanism,
simply remove the thumb screw and slide the motor off the end of the
rail.  Easy!  Our system is the only one available
that AUTOMATICALLY retracts
on impact and can adjust the amount of force needed to move the carriage along
the rail in a linear or non-linear fashion.  Along with the
completely hands
free integrated brake system that prevents the motor from moving
unless you want it to, there is simply no better mounting system available
today.

Why choose SS-9-HD?

• You
  have a heavy motor with a shaft length up to 60 inches (See UHD products
  for up to 72 inches and EXD products
  for over 72 inches)
• Our
  most popular HD mount that meets the needs of the vast majority of our
  customers when they can get bolts within 3.75 inches of the rub rail

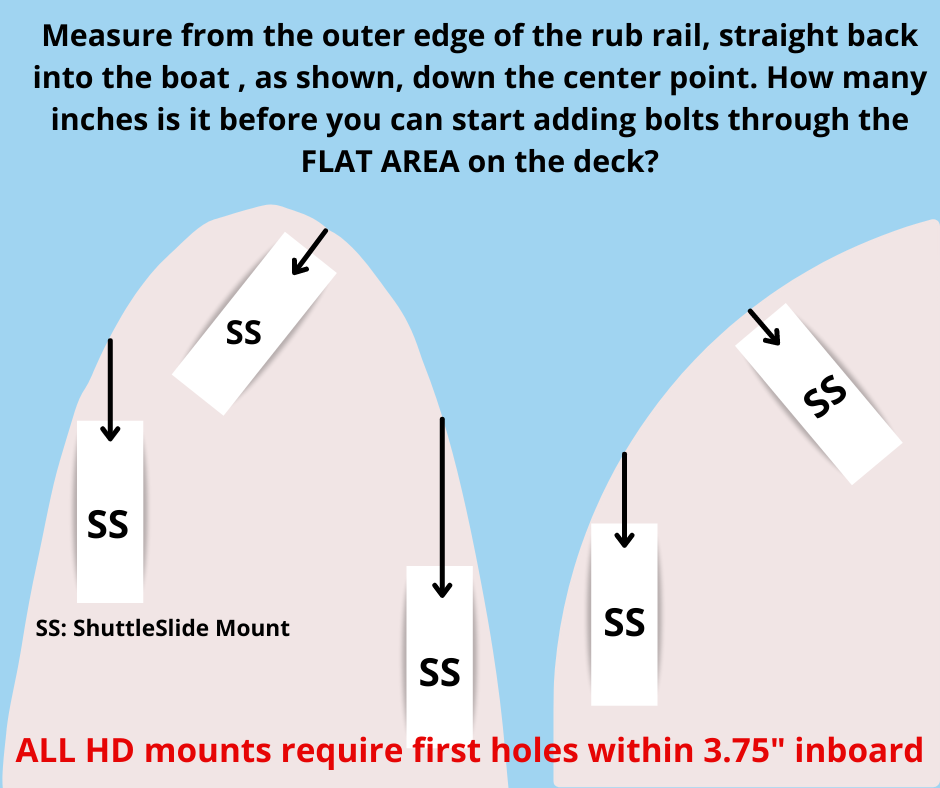

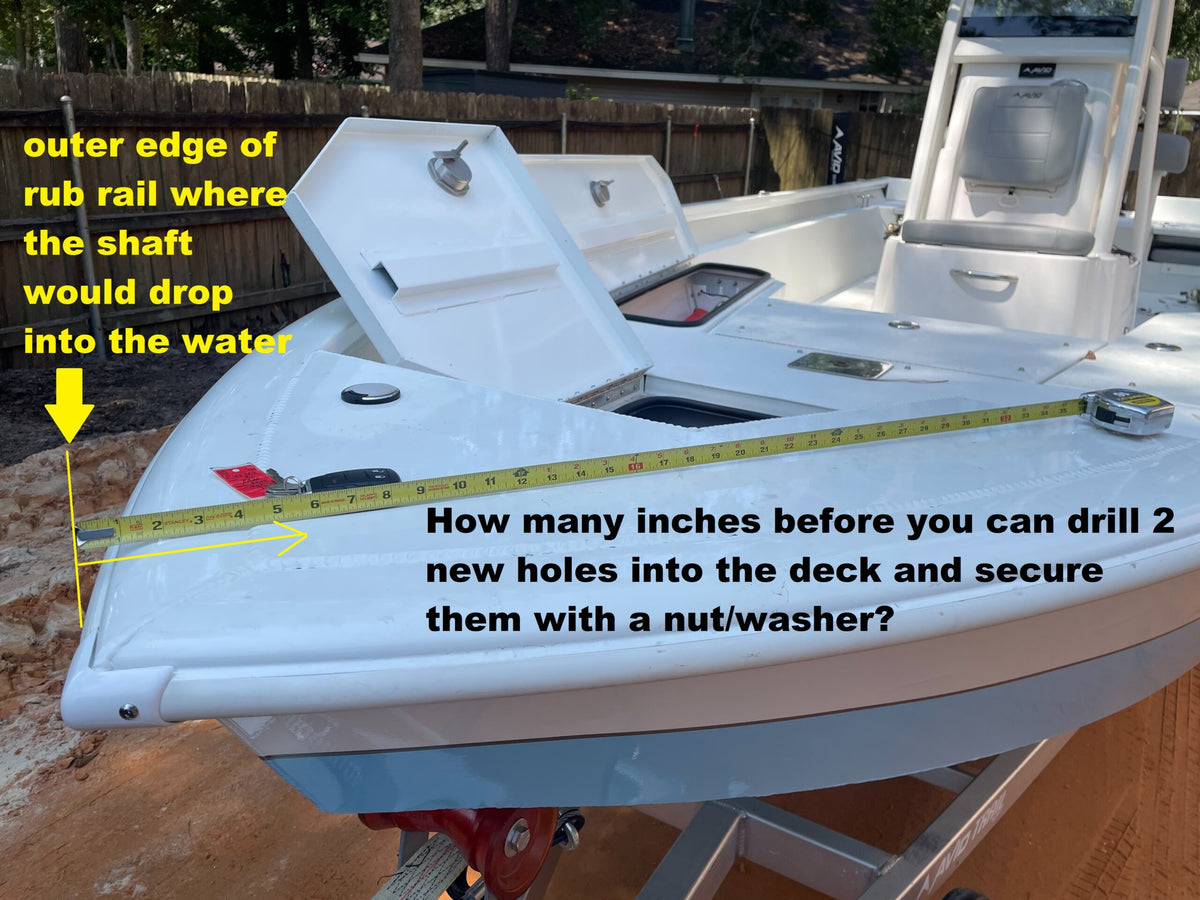

• ALL
  HD series mounts require 6 holes in your deck for proper
  attachment with the first set of bolts at approximately 3.75  inches
  of the rub rail (refer to picture in gallery).  If you can?t get
  bolts within 3.75 inches, we recommend using a SS-9-UHD (first
  bolt up to 6.5 inches from rub rail) OR a SS-9-UHD + BMAP-RE (first
  bolt up to 10.5 inches from rub rail)
• Provides
  enough retraction to bring most motors fully inside the rub rail
• If
  you need more than 9 inches we fully support up to 44 inches with
  our SS-X-HD product
  that is sold per inch.  Most installs with modern motors do not need
  this

Like the sound of ?NO NEW HOLES IN YOUR BOAT??

We also offer optional adapters like the BMA-12 and DPA-1 that will prevent
you from having to drill additional holes in your boat if you have already
previously used other mounts or attached your motor directly to your deck.

Product overview (See Specifications page
for complete information) .

• Designed
  to be used with the following mount systems or trolling motors directly
  that share the same bracket bolt patterns:
• Minn
  Kota: Ulterra, Terrova, Powerdrive, Riptide Ulterra, Riptide
  Terrova, Riptide Powerdrive, Riptide SP/ST, PD/HC Pontoon and DH40
  in any shaft length or voltage configuration
• MotorGuide: Xi5
  and Xi3 in any shaft length or voltage configuration
• Rhodan HD
  GPS anchors (Directly mounted to SS-9-HD)
• Haswing
  (requires additional holes)
• Water
  Snake models
• RTA-17,
  MKA-21, RTA-54, RTA-62, MKA-64 Quick Release mounts**
• JM55007
  (RTA-17 / MKA-21 clone) Quick Release mounts**
• Many
  other brands that share the same bolt patterns as above

Dimensions

•
• Base
  Rail ?Puck? Dimensions:  15.25 x 3.5 inches
• Travel:
  ~9 inches
• Mounted
  height:  ~1.50 inches from mounting surface (Boat deck typically)
• Rated
  motor weight (NOT thrust): 100 lbs
• Rated
  shaft length:  UP TO 60 inches (See UHD products
  for up to 72 inches and EXD products
  for over 72 inches)
• Installation Instructions
• Warranty:
  Lifetime*

*Please see Warranty page
for complete details of coverage

** Requires additional BMAP-54 adapter
