Bob's Machine Shop | SKU: BMS-FIXED-SB-01

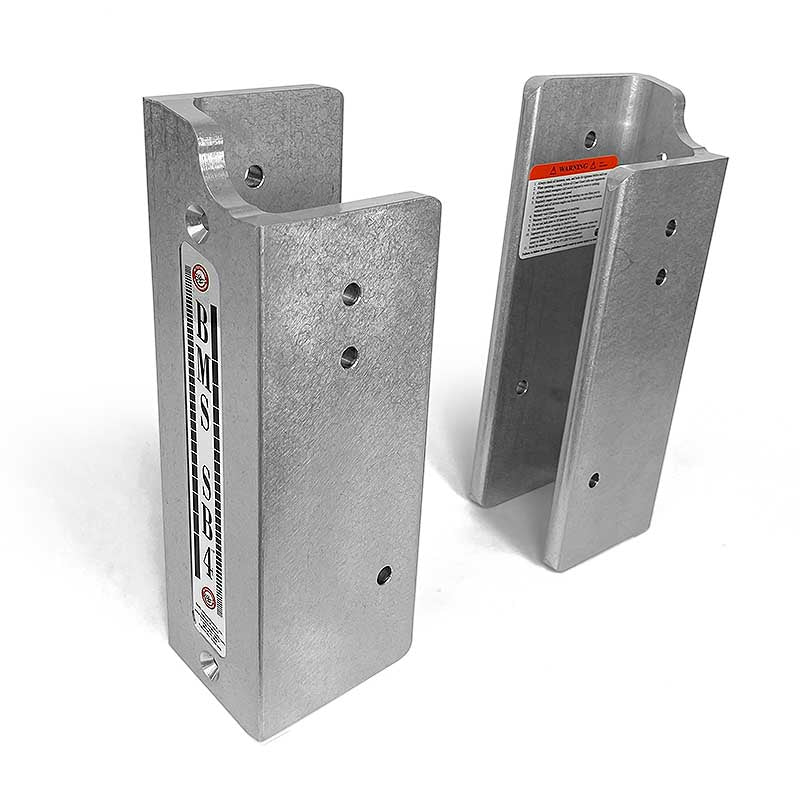

Fixed Setback Bracket w/ 1.5 inch lift

$400.00 USD

Size

10 Inch 4 FT 6 Inch 8 Inch

Include Cross Bars?

No Yes, Include Cross Bars

Have a Question?

Need help deciding? Wondering if something is in stock? Have a question about a product? Call 877-776-6084 to speak with a real person for assistance, or to place an order by phone.

Delivery and Shipping

In-stock items purchased before 3pm EST will ship the same day. In-stock items purchased after 3pm or on a weekend or holiday will ship the next business day. Tracking is provided the morning after your item ships.

Best Value Guarantee

Find a better price somewhere else? Let us know and we will do our best to beat the competition. Learn more about our best value guarantee here.

Looking for a 5-Star Experience?

We are honored to have so many amazing customers who have shared their experience by leaving a Google review. We strive to continue to give every customer the same great experience. Find out what you can expect when you buy from us by reading our Google reviews.

Do you need other items to go with your purchase? Let us help you put together a custom BUNDLE so you can SAVE! Speak with an sales consultant - Call 877-776-6084.

Description

4? Fixed Setback Brackets with 1.5? built in lift rated for up to 550 HP

Also available in 6?, 8? & 10?. Choose your setback when adding it to your cart.

1.5? of built-in lift, and 2 mounting hole options.

Thick material and large radius make these the one of the strongest available!

Bob?s Machine Shop?s new fixed setback brackets provide advantages for all boaters, including improved fuel economy and better top speed.

Setback brackets re-position the motor into cleaner water to increase propeller efficiency and minimize prop slippage. Drag is reduced and the boat exhibits more bow lift, which results in a drier ride. The increased distance between the propeller and the hull also improves boat operation in reverse.

Bob?s Machine Shop?s fixed setback brackets are made of 5/8?s inch thick, heavy-duty 6061 T6 aircraft-grade aluminum and can handle up to 550-hp engines. They have the same industrial design and appearance as Bob?s Machine?s hydraulic jack plates to give an overall look and feel of consistency.

Installing the brackets is easy. Remove the motor and install the brackets in the transom?s existing holes. Then re-mount the motor on the brackets.

Because the brackets are designed to fit all motors with the standard BIA bolt pattern, there is no need to plug and re-glass the old holes. The brackets are also pre-drilled with two sets of mounting holes to provide different engine height adjustments. Comes with Bob?s limited lifetime warranty

Predrilled for shallow water anchors & optional additional rigid cross bars.

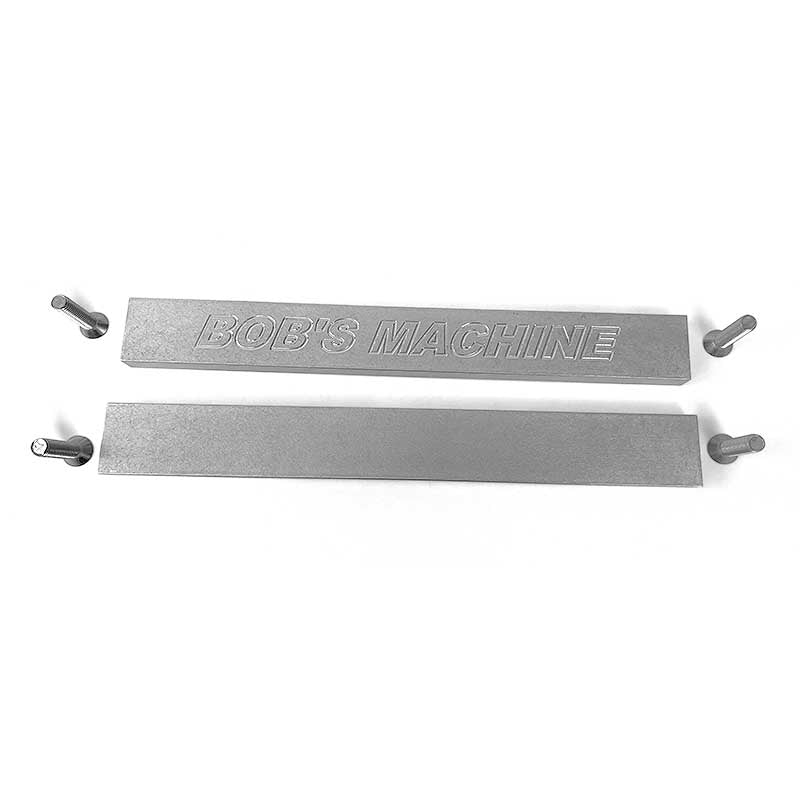

Some motor brands require setback brackets to be 1 piece design in this situation, the additional rigid cross bars are required. CLICK HERE FOR CROSS BARS!

SB4? 18 LBS

SB6? 23 LBS

SB8? 28 LBS

SB10? 35 LBS includes rigid cross bars standard
