Description
Description

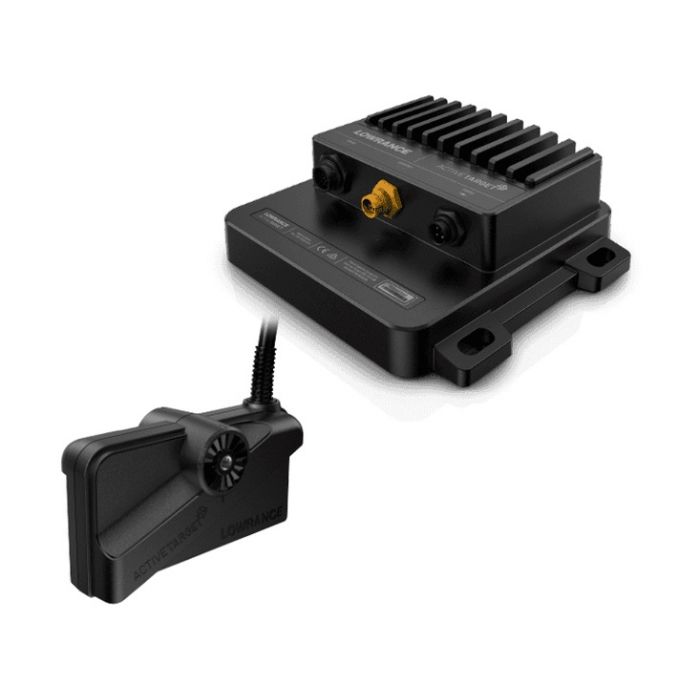

Lowrance ActiveTarget Live Sonar System
Model: 000-15593-001
- Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view ? an ultra-wide, overhead view in front of your boat
- See how fish are positioned in and around structure and watch them respond to your lure as it happens
- High-resolution live images remove the guesswork from sonar interpretation
- Know whether fish are active
- Compatible with HDS LIVE, HDS Carbon and Elite FS
Watch high-resolution images of fish movements ? tracking them as they swim in and around cover with ActiveTarget? Live Sonar. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it?s time to make an adjustment ? information that is harder to get from traditional sonar or structure imaging.
Track fish and your presentation with high-resolution views in front or below your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat, perfect for finding bait balls and big schools of fish.
ActiveTarget is compatible with Lowrance HDS LIVE, HDS Carbon and Elite FS fishfinder/chartplotters.
Specifications
| Environmental | |
| Storage Temperature | -30 C To +70 C (-22 F To +158 F) |
| Operating Temperature | -15C To +55C (5 F To 131 F) |
| IP Class | IP67 |
| Electrical | |
| Power Supply | 12 / 24 V DC |
| Operating Voltage | 10.8 V DC ? 31.2 V DC |
| Current Drain (Maximum) | 1.5A @ 13.8V |
| Reverse Polarity Protection | Yes |
| Fuse Rating | 3 A |
| Physical | |
| Weight | 1.86 kg (4.12 lbs) |
| TRANSDUCER | |
| Environmental | |
| Storage Temperature | -30 C To +70 C (-22 F To +158 F) |
| Water Temperature / Operating | 0 C To +35 C (32 F To 95 F) |
| Physical | |
| Weight | 1.21 kg (2.67 lbs) |
| Cable Length | 7.62 m (25 ft) |

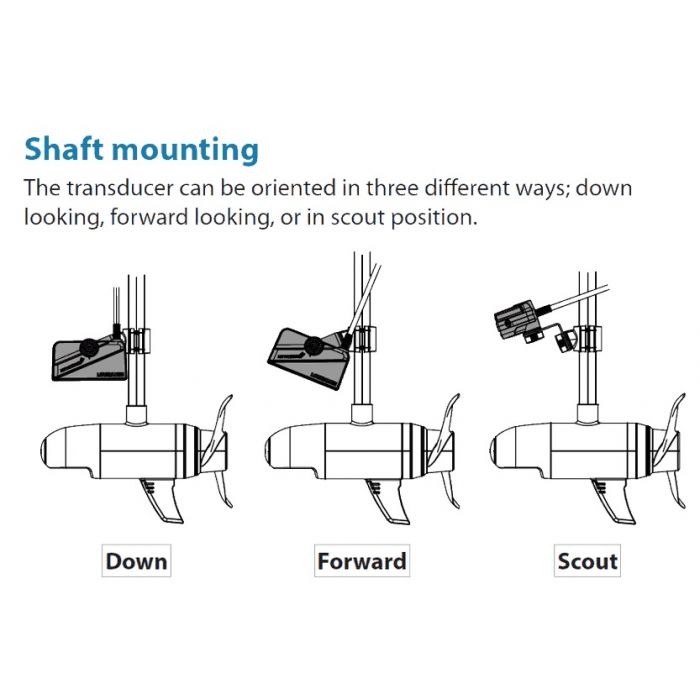

| Mounting Options | |
| Trolling Motor Shaft Mount | Included |
| Trolling Motor Forward/Down Mount | Included |
| Trolling Motor Scout Mount | Included |
| Transom Mount | Sold Separately |
| Beam Angle | 18 Degrees x 135 Degrees |
What's in the Box:
- ActiveTarget Black Box Only
- ActiveTarget Transducer Only
- ActiveTarget Trolling Motor Shaft Mount Kit
- ActiveTarget TRM FWD/Down Mount Kit
- ActiveTarget Trolling Motor Scout Mount Kit
- Power Cable
- 15' Ethernet Cable
