Humminbird XNT-9-HW-MDI-75-T
- Brand: Humminbird
- Product Code: 7102951
- Availability: Call for Availability
-
$209.99
- OR -
Humminbird XNT-9-HW-MDI-75-T
Model: 710295-1
- This accessory is compatible with the following Humminbird products: HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G3N.
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 350ft (107m), MEGA DI: 1075-1150 kHz - 125ft (38m)

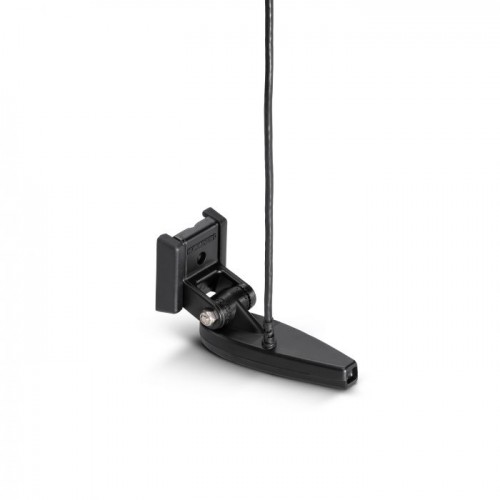

MEGA Down Imaging Transom Mount Transducer supports MEGA Imaging/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20’ cable.
Specifications
| Mount Type | Transom |
| Sonar Type | MEGA Imaging, Dual Spectrum |
| Current Models | HELIX 7, HELIX 8 |
