Garmin B175M 20 degree
- Brand: Garmin
- Product Code: 010-11939-22
- Availability: Call for Availability
-
$1,199.99
- OR -
Garmin Airmar B175M
w/20° Tilt
1kW
8-pin

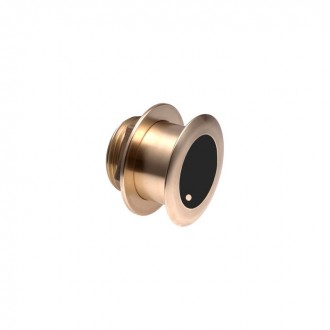

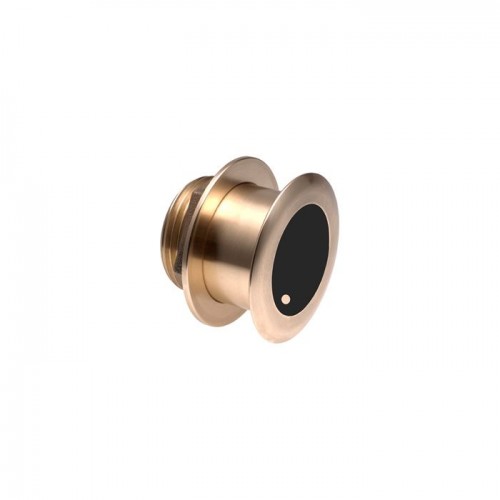

Flush-mounted bronze housing protrudes less than 1/4" outside hull and can sit on trailer rollers/bunks without damage. Tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.
Max Depth - 3,000'
Suppoarted Deadrise/Transom Angles - 16-24° Deadrise
| Freq. Khz | Power | Beam Width (°) LF//HF (-3dB) | Max Depth (ft) | Septh,Speed,Temp | # of Pins | Supported Deadrise / Transom Angles |
| 85-135 | 1KW | 11-16 | 3000 | Depth,Temp | 8 | 16-24° Deadrise |
