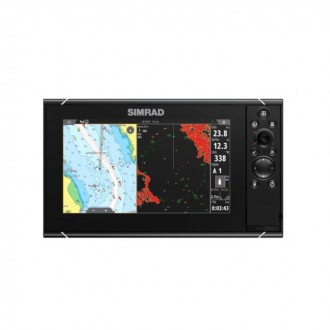

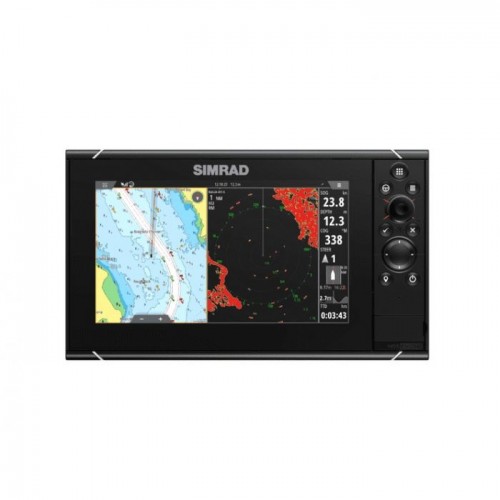

Simrad NSS9 evo3s Combo MFD
- Brand: Simrad
- Product Code: 00015402001
- Availability: In Stock
-
$2,399.00
- OR -
Simrad NSS evo3S 9in Display
Model: 000-15402-001
- High Resolution, High Bright, SolarMax IPS Displays
- Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
- Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images
- Take another step forward with Simrad’s premium network modules for the ultimate offshore performance
- Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control
- Low profile glass dash styling
- Built in Wi-Fi connectivity
- Next Generation Processor
- SolarMAX IPS Display Technology
- Multi-touch screen and keypad hybrid control
- Built-in Advanced Echosounder
NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved
Specifications
| Physical | |
| Dimensions | 287 x 166 x 90 mm (11.30 x 6.55 x 3.50")with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72) |
| Weight | 1.41kg/3.11lb |
| Environmental | |
| Operating temperature range | -15°C to +55°C (5° F to 131° F) |
| Environment Shock Vibration | 100,000 cycles of 20G |
| Storage temperature range | -20°C to +60°C (4°F to 140°F) |
| Water resitance | IPX6 and 7 |
| Power | |
| Supply voltage | 10 - 31.2 V DC |
| Fuse rating | 5A |
| Power consumption (Max) | 21W |
| Display | |
| Display backlight color | White |
| Display resolution | 600 x 1280 |
| Display screen brightness | 1200 nits |
| Display size and type | High Visibility SolarMax HD® IPS 7" optically bonded TFT |
| Display viewing angles | 80° top/bottom, 80° left/right |

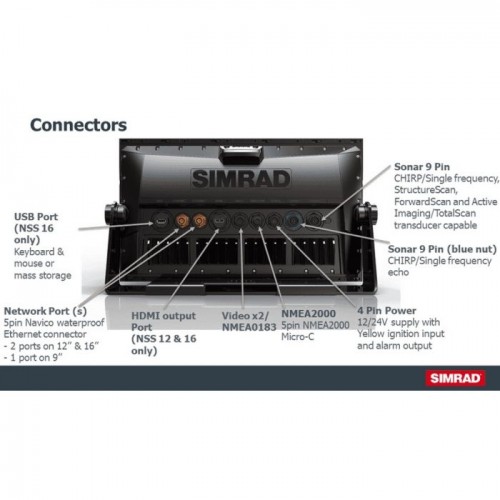

| Connectivity | |
| Ethernet | 1 x 5 pin yellow connector x 1 Mbit |
| Bluetooth | Internal |
| NMEA2000 connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 connectivity | 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001) |
| Video connectivity | 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). |
| WiFi connectivity | Internal |
| Sonar | |
| Sonar frequencies | 40-250kHz 455-800kHz |
| Sonar max depth | 3000’+ (tested with B175L) |
| Sonar output power | 1kW RMS |
| Compliance | Compliance |
| GPS | |
| GPS | Internal |
| GPS update rate | 10 Hz |
| GPS channels | 34 |
| GPS correction | WASS, EGNOS, MSAS, GLONASS |
| GPS position accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| GPS time to first fix | Cold start 50 sec, Satellite Reacquisition 5 sec |
What's in the Box:
- NSS evo3S 9" Display
- NSS9 EVO3 SUN COVER
- NSS9 EVO3 & ZEUS - 9 Mounting Bracket
- NSS9 EVO3 & ZEUS3 - 9 DASH MOUNT KIT
- NSS9 EVO3 & ZEUS3 — 9 EDGE BEZELS
- Power Cable
